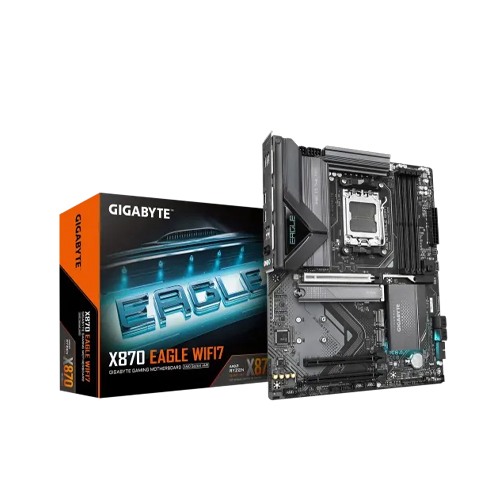

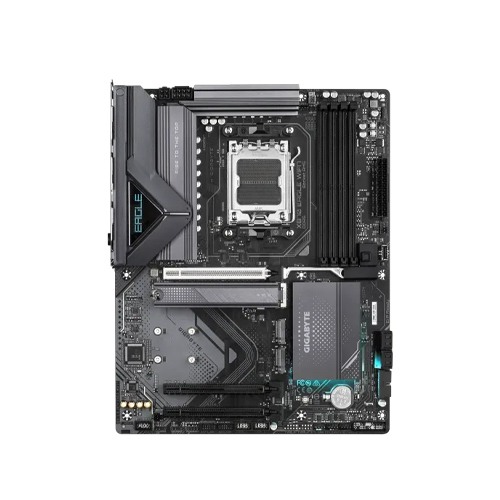

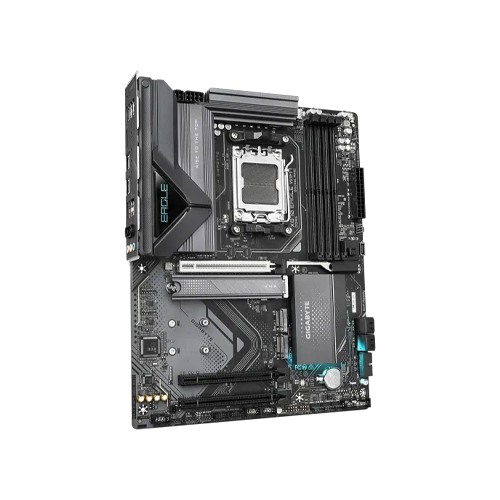

GIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: X870 EAGLE WIFI7
Key Features
- Supports AMD Ryzen 9000/8000/7000 CPUs
- DDR5 memory up to 8000 MHz (OC), 256GB max
- Dual USB4 Type-C ports with DisplayPort 1.4
- Integrated Wi-Fi 6E and Realtek 2.5GbE LAN
| General Information | |
| Type | DDR5 |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. |
| Maximum Memory Supported | up to 256 GB (64 GB single DIMM capacity) of system memory |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 900/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Slots | 4 DIMMs |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Main Features | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD X870 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Supported CPU | AMD Socket AM5, support for AMD Ryzen 9000, 8000 & 7000 Series Processors |
| Memory Specifications | |
| Supported Memory | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Connector & ports | |
| HDMI | 1 x HDMI port |

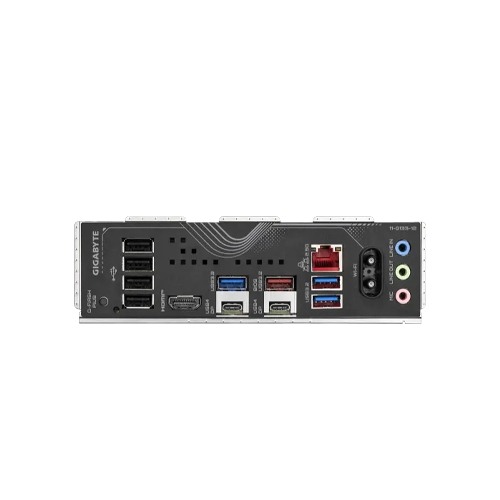

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port* 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector. 4 x SATA 6Gb/s connectors |
| USB (s) | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Warranty Information | |
| Warranty | 3 Years |
GIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX Motherboard
The GIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX Motherboard is engineered to deliver top-tier performance for gamers, creators, and PC enthusiasts who demand the best from their system. Designed to support the latest AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, this motherboard harnesses the power of the AMD X870 chipset, enabling unmatched processing speeds and robust stability. The advanced DDR5 memory support with four DIMM slots allows for ultra-fast dual-channel RAM configurations up to 256GB, including high overclocked frequencies up to 8000 MHz, ensuring smooth multitasking and future-proofing your build.This ATX form factor board integrates premium connectivity options, including dual USB4 Type-C ports supporting DisplayPort video output and HDMI 2.1 for ultra-high 4K resolution at 60Hz. The inclusion of Realtek 2.5GbE LAN and the latest AMD Wi-Fi 6E technology with Bluetooth 5.2 guarantees fast and reliable wired and wireless network connections. Storage options are versatile with three M.2 slots supporting PCIe Gen5 and Gen4 NVMe SSDs, plus four SATA 6Gb/s ports for additional drives, offering high-speed data transfers and RAID configurations for enhanced performance and data protection.Audio performance is powered by Realtek High Definition Audio supporting up to 7.1 channels, providing rich, immersive sound for gaming and media. The motherboard also features multiple RGB headers for customization, a robust VRM design, and convenient front panel connectors for USB 3.2 Gen 2x2 and USB Type-C. With a solid 3-year warranty and bundled Norton Internet Security software, the GIGABYTE X870 EAGLE WIFI7 is a premium choice for building a high-performance AMD-based desktop that excels in speed, connectivity, and reliability.
Features
- Supports AMD Ryzen 9000/8000/7000 CPUs with AM5 socket
- Advanced AMD X870 chipset for powerful performance
- DDR5 memory support up to 8000 MHz (OC), 256GB max
- Dual USB4 Type-C ports with DisplayPort and 4K support
- Realtek 2.5GbE LAN and AMD Wi-Fi 6E with Bluetooth 5.2
- Three M.2 slots supporting PCIe Gen5 and Gen4 SSDs
- Realtek High Definition Audio with 7.1 channel support
- ATX form factor with extensive expansion slots
- Multiple RGB headers for customizable lighting effects
- 3-year warranty with Norton Internet Security included
