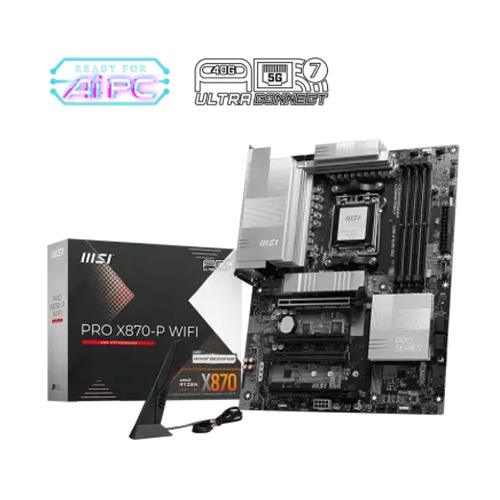

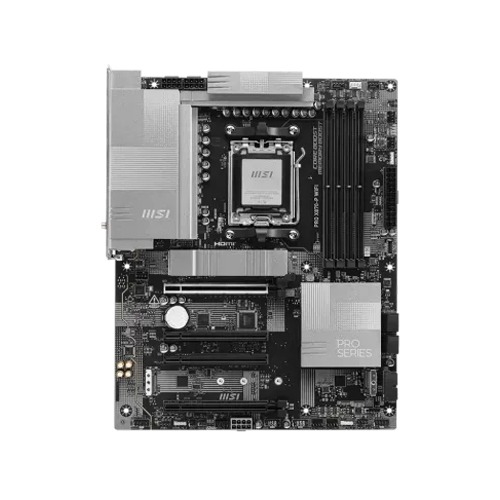

MSI PRO X870-P WIFI DDR5 AMD AM5 ATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: PRO X870-P WIFI
Key Features
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5 8200+(OC) MHz
- Graphics Output: 1x HDMI, 1x Type-C Display Port
- Features: Realtek 8126VB 5G LAN, Wi-Fi 7
| General Information | |
| Type | DDR5 |
| Chipset Manufacturer | AMD X870 |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
| Display Port (s) | 1x Type-C DisplayPort |
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* |
| Maximum Memory Supported | 256GB |
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Slots | 4x UDIMM |
| Special Features | 4x EZ Debug LED |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
| Main Features | |
| Form Factor | ATX 243.84mmx304.8mm |
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory Specifications | |
| Supported Memory | Support DDR5 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Connector & ports | |
| HDMI | 1x HDMI |
| Internal I/O Ports | 2x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LAN Port (s) | Realtek 8126VB 5G LAN |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) |

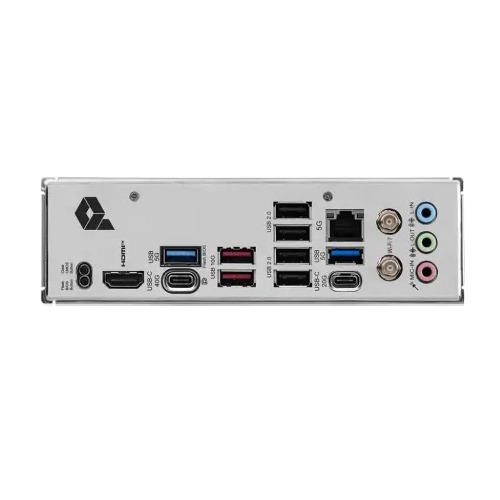

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
| Warranty Information | |
| Warranty | 3 Years |
MSI PRO X870-P WIFI DDR5 AMD AM5 ATX Motherboard
MSI PRO X870-P WIFI DDR5 AMD AM5 ATX Motherboard is an excellent choice for users looking to build high-performance systems with the latest AMD Ryzen processors. Powered by the AMD X870 chipset and supporting AM5 sockets, this motherboard is compatible with AMD Ryzen 9000, 8000, and 7000 series desktop processors, making it a future-proof option for your computing needs.Designed with DDR5 memory support, the MSI PRO X870-P supports up to 256GB of RAM at overclocked speeds of up to 8200+ MHz, ensuring smooth multitasking and excellent performance in demanding applications like gaming and content creation. This motherboard has 4x PCIe slots, including PCIe 5.0 x16 for high-speed GPU installation, making it ideal for gaming enthusiasts and professionals who require substantial graphic power.For storage, the MSI PRO X870-P includes 3x M.2 slots for ultra-fast NVMe storage drives, supporting PCIe 5.0 for the M.2_1 slot and PCIe 4.0 for the other slots. This provides excellent flexibility for expanding your storage while ensuring fast read/write speeds. Additionally, the board supports RAID 0 and RAID 1 configurations for enhanced performance or data redundancy.Connectivity options are abundant, with Wi-Fi 7 (5.8Gbps), Realtek 5G LAN, and Bluetooth 5.4, ensuring high-speed internet and seamless device connections. It also offers USB 40Gbps Type-C ports for fast data transfer and HDMI 2.1 for display connections, supporting resolutions up to 4K 60Hz.This motherboard also features RGB LED connectors for customizable lighting and EZ Debug LEDs for easy troubleshooting. With 3 years of warranty and solid build quality, the MSI PRO X870-P is a reliable choice for both professional and enthusiast builds.
Features
- Supports AMD Ryzen 9000, 8000, and 7000 Series Processors – Future-proof your build with support for the latest high-performance AMD processors.
- DDR5 Memory Support – Handle demanding workloads with up to 256GB of high-speed DDR5 memory (up to 8200+ MHz OC).
- PCIe 5.0 x16 Slot – Boost graphics performance with PCIe 5.0 support for the latest GPUs, ensuring smooth gaming and content creation.
- Wi-Fi 7 & 5G LAN Connectivity – Enjoy ultra-fast, stable network performance with Wi-Fi 7 (5.8Gbps) and Realtek 5G LAN.
- Multiple M.2 Slots – Install up to 3 high-speed NVMe SSDs with PCIe 5.0/4.0 support for faster storage and loading speeds.
- RAID Support – Enhance storage performance or data redundancy with RAID 0 and RAID 1 configurations.
- RGB LED Support – Personalize your build with customizable RGB lighting, featuring multiple LED headers.
- 3-Year Warranty – Backed by a 3-year warranty for added peace of mind.
