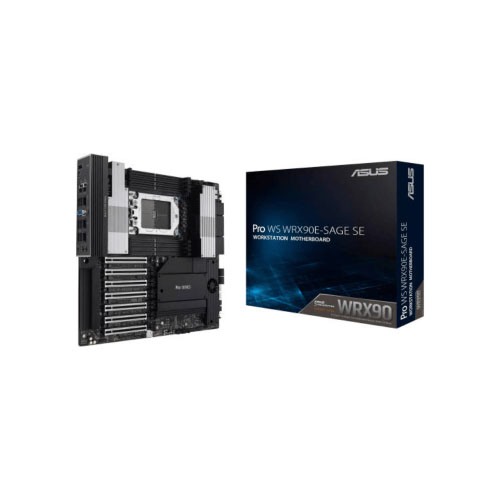

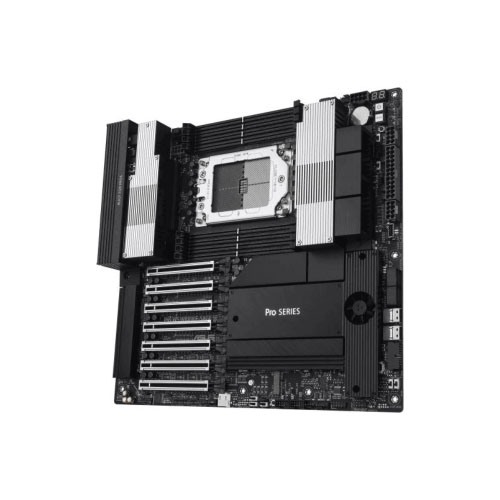

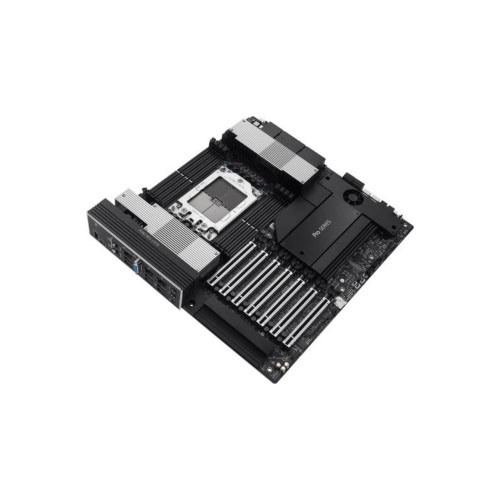

Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard

Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard
Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard
Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard
-12 %
Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard
Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard
Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard
Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard
198,000৳
225,000৳
Ex Tax: 198,000৳
EMI starts at 69,432৳/month. View all 27 banks EMI plans >
  • Stock: In Stock
  • Brand: Asus
  • Model: Pro WS WRX90E-SAGE SE

Key Features

  • Socket: AMD Socket sTR5
  • AMD sTR5 socket supports up to 96-core CPUs
  • Form Factor: EEB Form Factor, 12 inch x 13 inch (30.5 cm x 33 cm)
  • Chipset: AMD TRX50 Chipset for Ryzen Threadripper PRO 7000 WX-Series
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR5
Audio Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
Bundled Software ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey
IT Management software supported
- ASUS Control Center Express(ACCE)
Internal I/O Port Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
5 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
Power related
1 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
2 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Chassis intrusion header
1 x COM port header
1 x FlexKey button 1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x M.2 slot (Key E)
7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin system panel header
1 x Thermal sensor header
PCI 6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
Slots 7x PCIe 5.0 x16 Slots
Special Feature ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate and onboard thermal pads
- M.2 heatsink
- Steel backplate
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
BMC Related
1 x BMC switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
1 x Message LED header
1 x microSD card socket
2 x LAN LED headers
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header (Dedicated Management for AST2600)
1 x VPP_I2C header
Main Features
Chipset AMD WRX90 Chipset
Form Factor EEB Form Factor, 12 inch x 13 inch (30.5 cm x 33 cm)
Supported CPU AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series*
Memory Specifications
Maximum Memory 2048GB
Connector & ports
LAN Port (s) 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 x Intel® dual 10Gb Ethernet
ASUS LANGuard
Supported Storage Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD WRX90 Chipset
2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports
USB (s) Rear USB (Total 9 ports)
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Asus Pro WS WRX90E-SAGE SE Motherboard

When it comes to high-end professional computing, users need a motherboard that delivers extreme reliability, superior performance, and outstanding expandability. Workstation-class motherboards are built for engineers, animators, researchers, and developers who run demanding workloads every day. The Asus Pro WS WRX90E-SAGE SE Motherboard stands out as one of the most advanced workstation motherboards designed to support next-generation professional tasks.

Designed for AMD sTR5 Platform

This motherboard is built for the powerful AMD sTR5 socket, supporting workstation-grade AMD Ryzen Threadripper processors. These processors are known for their exceptional core count, massive PCIe throughput, and multi-threaded performance. With an EEB form factor, the motherboard provides an enterprise-level layout that maximizes stability and efficiency for creative projects, scientific workloads, and data-intensive tasks.

Build Quality and Industrial-Grade Durability

ASUS has engineered this motherboard with premium-grade components that ensure long-lasting durability. The PCB is built using high-quality materials designed to withstand heavy workloads 24/7. Professional creators demand reliability, and this board meets those expectations by offering advanced cooling solutions, enhanced power delivery, and robust structural design. The metal-reinforced PCIe slots add extra protection for heavy GPUs, ensuring stable operation during long rendering sessions.

High-Speed Storage Options

Professional users require extreme storage performance to handle large files, datasets, and project libraries. This motherboard supports multiple NVMe M.2 slots that take full advantage of PCIe 5.0 speeds. Additionally, U.2 connectors and high-speed SATA ports are available for enterprise-grade storage configurations. Users can build multi-layered storage systems combining NVMe SSDs for performance and large SATA drives for mass storage.

Memory Capacity and Performance

Workstation tasks like rendering, simulation, scientific computing, and virtualization require enormous amounts of RAM. The board supports high-capacity memory configurations with ECC support for mission-critical stability. ECC memory ensures that data corruption is minimized during long processing tasks. Combined with high memory frequency support, users get outstanding multitasking and performance for every task, from 3D modeling to AI computing.
