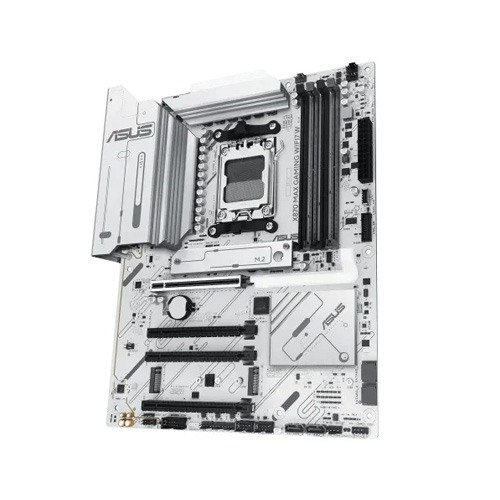

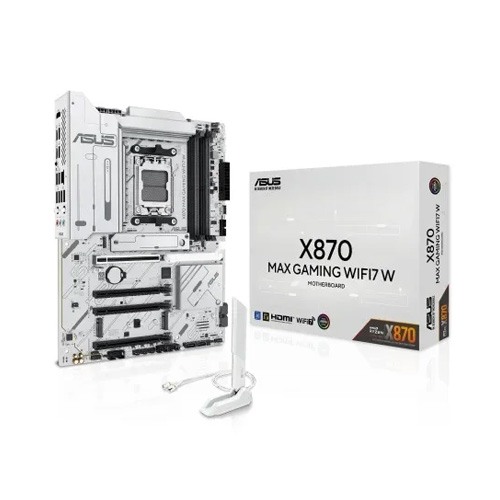

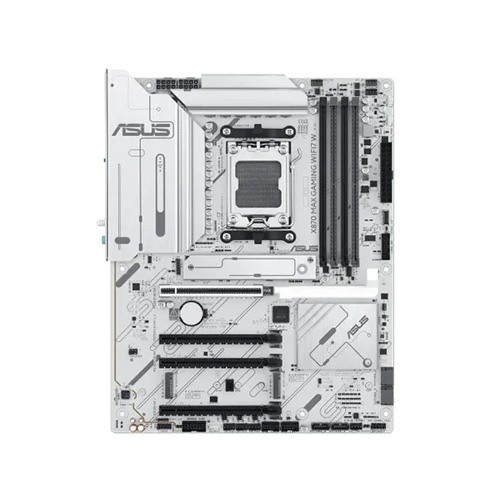

Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard
-18 %
Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard
- Stock: In Stock
- Brand: Asus
- Model: X870 MAX GAMING WIFI7 W
Key Features
- Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
- Supported Memory: 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)
- Graphics Output: 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
- Features: Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
| General Information | |
| Type | DDR5 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey headersader |
| Graphics | 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. *** VGA resolution support depends on processors' or graphic cards' resolution. |
| M.2 Socket | MD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) |
| RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types. |
| Slots | 4 x DIMM |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headersader |

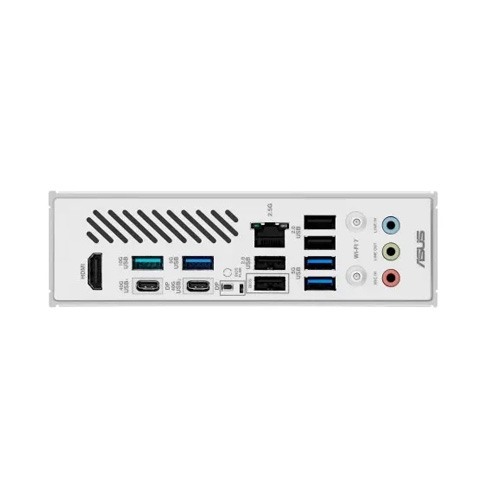

| USB | Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 * Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. |
| Main Features | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD X870 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Memory Specifications | |
| Maximum Memory | 256GB |
| Supported Memory | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
| Connector & ports | |
| Audio Jack | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types. |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4® (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required. * The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. ** Specifications vary by CPU types. |
| Warranty Information | |
| Warrantty | 3 Years |
Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard
ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard is a next-generation platform designed to deliver exceptional performance and advanced connectivity for AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Built on the robust AMD X870 chipset and supporting the latest DDR5 memory up to 8000+ MT/s (OC), this motherboard ensures ultra-fast data handling and seamless multitasking. With a total capacity of up to 256GB across 4 DIMM slots, it's ideal for both gamers and content creators. It features multiple high-speed expansion slots, including one PCIe 5.0 x16 and multiple PCIe 4.0/3.0 slots, along with triple M.2 sockets supporting PCIe 5.0 and 4.0 for ultra-fast NVMe SSD storage. The onboard Realtek 7.1 Surround Sound HD Audio CODEC delivers immersive audio, enhanced with premium capacitors and audio shielding. Connectivity is future-ready with Wi-Fi 7, 2.5Gb LAN, USB4 (40Gbps) Type-C, HDMI 2.1, and up to 17 USB ports (rear and front combined), ensuring maximum device compatibility and ultra-fast data transfer. The motherboard also supports advanced cooling with multiple 4-pin fan headers, AIO pump support, and dedicated VRM and M.2 heatsinks. ASUS-exclusive features like AI Cooling II, Aura Sync RGB, Q-Design for easy setup, and a pre-mounted I/O shield make it highly user-friendly. With a 3-year warranty and bundled software including Armoury Crate, AI Advisor, and Norton 360 (trial), the ASUS X870 MAX GAMING WIFI7 W is a premium choice for building a high-performance, future-proof PC.
Features
- Supports AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors (AM5 Socket)
- AMD X870 Chipset for next-gen performance
- Supports DDR5 memory up to 8000+MT/s (OC), max 256GB
- PCIe 5.0 x16 slot for high-speed GPU connectivity
- Triple M.2 slots with PCIe 5.0 & 4.0 support for ultra-fast NVMe SSDs
- Realtek 7.1 Surround Sound HD Audio with premium capacitors
- Onboard Wi-Fi 7 (2.9Gbps) + Bluetooth 5.4
- 2 x USB4 (40Gbps) Type-C ports with display output
- HDMI 2.1 port supporting 4K @ 60Hz
- Realtek 2.5Gb Ethernet for stable wired networking
- ASUS Q-Design: Q-Release, Q-LED, Q-Antenna for easier setup
- Advanced cooling with VRM & M.2 heatsinks, AIO pump header, and multiple fan headers
- ASUS 5X Protection III: Enhanced hardware-level safeguards
- Aura Sync RGB with Addressable Gen 2 headers
- BIOS FlashBack™, EZ Flash 3, and pre-mounted I/O shield for DIY ease
- Supports RAID 0/1/5/10 (Ryzen 9000), RAID 0/1 (Ryzen 8000), RAID 0/1/10 (Ryzen 7000)
- Bundled software: Armoury Crate, AI Cooling II, ASUS CPU-Z, Norton 360 Trial
