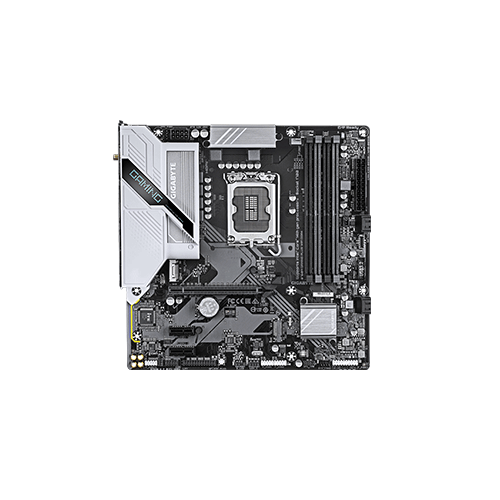

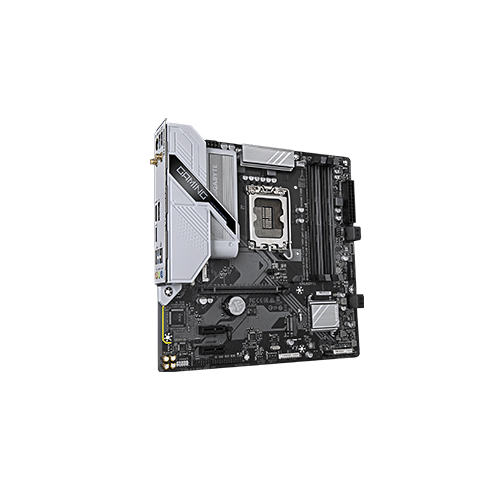

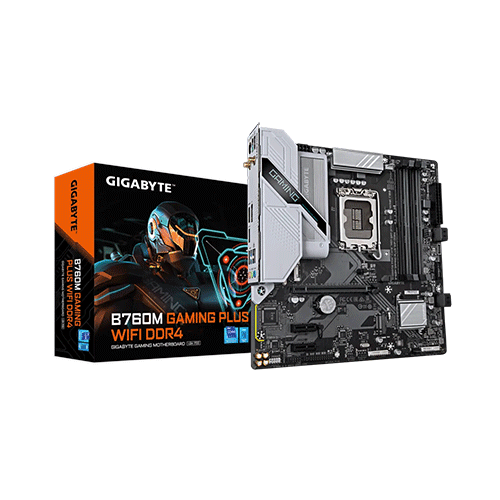

GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard
Discontinued
- Stock: Discontinued
- Brand: Gigabyte
- Model: B760M GAMING PLUS WIFI DDR4
Discontinued
Key Features
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance:Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR4:4*DIMMs XMP Memory Module Support
- Fast Networks:Wi-Fi 6 802.11ax, GbE LAN
| General Information | |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| I/O Controller | iTE® I/O Controller Chip |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| USB | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Main Features | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel® B760 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty Information | |
| Warranty | 03 years |
GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard
The GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard is a high-performance micro ATX motherboard designed to meet the demands of gamers and PC builders alike. Featuring the Intel® B760 Express Chipset, it supports the latest 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors, providing exceptional processing power for gaming and multitasking. Audio performance is a standout feature, with a Realtek® Audio CODEC that delivers high-definition audio supporting configurations up to 7.1 channels. Users can customize audio settings through software, enhancing the overall gaming experience. The motherboard includes an array of back panel connectors, including USB 3.2 Gen 1 and USB 2.0 ports, along with HDMI and DisplayPort outputs for integrated graphics support. The B760M GAMING PLUS is equipped with dual M.2 connectors for PCIe 4.0 SSDs, allowing for lightning-fast storage solutions, and four SATA 6Gb/s connectors with RAID support for flexible data management. The motherboard supports up to 128 GB of DDR4 memory, with speeds reaching up to 5333 MHz when overclocked, ensuring smooth operation and responsiveness. A key highlight is the built-in Realtek® Wi-Fi 6 RTL8851BE module, offering high-speed wireless connectivity with support for Bluetooth 5.3. This ensures gamers can enjoy lag-free online gaming and seamless connections to peripherals. Furthermore, the motherboard features comprehensive hardware monitoring capabilities, allowing users to track temperatures, voltages, and fan speeds for optimal system performance. With a 3-year warranty and robust design, the GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard is an excellent choice for gamers looking to build a powerful and reliable system.
GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard Features
- High-Quality Audio: Equipped with a Realtek® Audio CODEC, this motherboard supports high-definition audio configurations from 2 to 7.1 channels, ensuring an immersive sound experience. Users can customize audio settings through software to optimize their audio output.
- Robust BIOS Support: The motherboard utilizes a licensed AMI UEFI BIOS, which offers advanced settings for system optimization and stability. It supports various standards like PnP 1.0a and ACPI 5.0.
- Powerful Chipset: Based on the Intel® B760 Express Chipset, it provides compatibility with the latest Intel® Core™, Pentium® Gold, and Celeron® processors, enhancing overall performance and multitasking capabilities.
- Ample Expansion Slots: The B760M GAMING PLUS features one PCI Express x16 slot supporting PCIe 4.0 for graphics cards or NVMe SSDs, along with two PCI Express x1 slots for additional expansion options.
- Memory Support: It supports up to 128 GB of DDR4 memory across four DIMM sockets, with speeds reaching up to 5333 MHz when overclocked. This includes support for ECC and non-ECC memory modules.
- Integrated Graphics: The motherboard supports Intel® HD Graphics with an HDMI port for 4K resolution (up to 4096x2160@60Hz) and a DisplayPort, allowing for multiple display setups.
- Wireless Connectivity: Featuring Realtek® Wi-Fi 6 RTL8851BE, it supports high-speed wireless standards (WIFI a/b/g/n/ac/ax) with Bluetooth 5.3, ensuring fast and reliable connectivity.
- Storage Options: The motherboard provides two M.2 connectors for PCIe 4.0 SSDs and four SATA 6Gb/s connectors, with support for various RAID configurations, facilitating flexible storage solutions.
- Comprehensive Monitoring: H/W monitoring features include voltage and temperature detection, fan speed control, and water cooling flow rate detection, helping users maintain optimal system performance.
- User-Friendly Features: The GIGABYTE Control Center (GCC) allows for easy management of system settings, while Q-Flash and Q-Flash Plus provide convenient BIOS updates without the need for a CPU or memory installed.
These features make the GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard a strong choice for gamers and PC enthusiasts seeking performance and versatility.
