GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard

GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
-19 %
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
26,500৳
32,600৳
Ex Tax: 26,500৳
EMI starts at 9,293৳/month. View all 27 banks EMI plans >
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B850M EAGLE WIFI6E

Key Features

  • Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
  • Graphics Output: 2x Display Port, 1 x HDMI
  • Features: 2x M.2 Slot, Realtek 2.5GbE LAN, Intel Wi-Fi 6E RTL8852CE
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR5
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Display Port (s) 2x DisplayPorts
Graphics Integrated Graphics Processor with AMD Radeon Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Slots 4 DIMMs
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Wireless Communication module Realtek Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Main Features
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD B650
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors
AMD Ryzen 8000 Series Processors
AMD Ryzen 7000 Series Processors
Memory Specifications
Maximum Memory Up to 256 GB (64 GB single DIMM capacity) of system memory
Supported Memory Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Connector & ports
Audio Jack 3 x Audio jacks
HDMI 1x HDMI
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

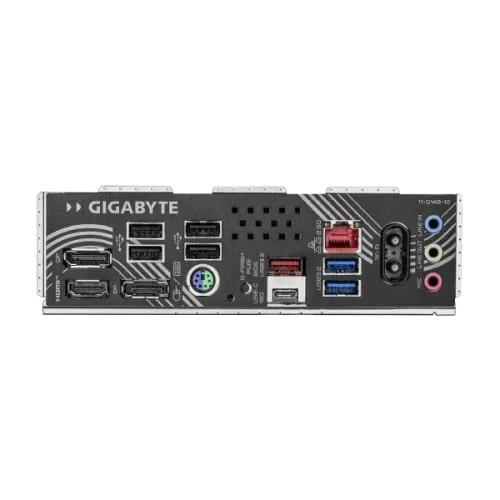

Back Panel Connectors
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks
LAN Port (s) Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
USB (s) CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Warranty Information
Warranty 3 Years

GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard

GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard is a powerful and feature-rich motherboard designed for gamers, PC enthusiasts, and professionals looking to build a next-gen AMD system. Built on the AMD B650 chipset and supporting Socket AM5, this board is compatible with the latest AMD Ryzen 9000, 8000, and 7000 Series processors, offering exceptional performance and future-ready features. Designed in a compact Micro ATX form factor, it supports up to 256GB of DDR5 memory with speeds up to 8200 MT/s (OC) across four DIMM slots. The motherboard also supports both AMD EXPO and Intel XMP memory profiles for easy overclocking. For graphics or high-speed storage, the board offers a PCIe 5.0 x16 slot, ensuring high-bandwidth support for GPUs or NVMe SSDs. Storage capabilities are impressive, with two M.2 slots supporting PCIe Gen5 and Gen4 SSDs and four SATA 6Gb/s ports. It supports RAID 0/1/5/10 configurations, although RAID 5 is exclusive to Ryzen 9000 CPUs. This ensures fast, flexible, and secure storage options for all users. Connectivity is top-tier with Wi-Fi 6E and Bluetooth 5.3 via the Realtek RTL8852CE module, providing ultra-fast wireless speeds and stable connections across 2.4GHz, 5GHz, and 6GHz bands. A 2.5GbE LAN port is also included for gamers and streamers needing low-latency, wired performance. The rear I/O includes HDMI 2.1 and dual DisplayPort 1.4 outputs, supporting up to triple display setups. USB connectivity includes USB 3.2 Gen 2 Type-C, Type-A, and multiple USB 2.0 ports. Other standout features include premium Realtek HD audio, Q-Flash Plus BIOS update support, multiple ARGB and RGB headers, and Smart Backup. The GIGABYTE B850M EAGLE WIFI6E is a strong choice for any modern AMD AM5 build, offering versatility, speed, and reliability in a compact package.

Features

  • Supports AMD Ryzen 9000, 8000, and 7000 Series processors with AM5 socket
  • Micro ATX form factor – compact and versatile design
  • Dual M.2 slots supporting PCIe Gen5/Gen4 NVMe SSDs
  • 4x DDR5 DIMM slots, up to 256GB RAM, 8200MT/s (OC) supported
  • PCIe 5.0 x16 slot for high-performance GPUs or SSDs
  • Wi-Fi 6E and Bluetooth 5.3 via Realtek RTL8852CE module
  • 2.5GbE LAN port for ultra-fast wired network connectivity
  • Triple display support with 1x HDMI 2.1 and 2x DisplayPort 1.4
  • Advanced RAID support (RAID 0/1/5/10 for NVMe, RAID 0/1/10 for SATA)
  • USB 3.2 Gen 2 Type-C & Type-A, plus multiple USB 3.2 Gen1 and USB 2.0 ports
  • High-quality Realtek 7.1-channel HD Audio CODEC
  • Multiple RGB and ARGB Gen2 headers for custom lighting setups
  • Q-Flash & Q-Flash Plus for easy BIOS updates without CPU or RAM
  • GIGABYTE Control Center (GCC) software for easy system management
  • Smart Backup support for system protection
  • Compatible with Trusted Platform Module (TPM) for enhanced security
