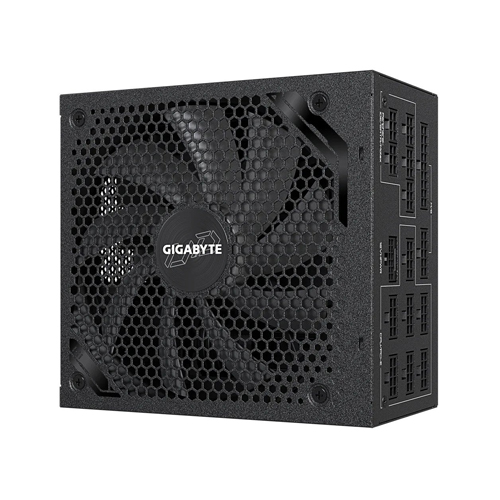

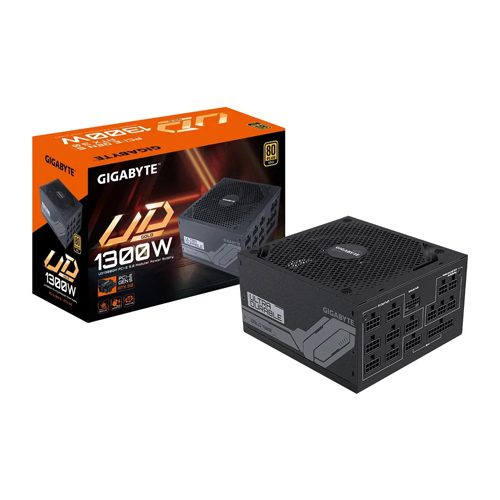

Gigabyte UD1300GM PG5 1300W ATX Power Supply
TBA
- Stock: Out Of Stock
- Brand: Gigabyte
- Model: UD1300GM PG5
Out Of Stock
Key Features
- Fan Type: 140mm double ball bearing fan
- INPUT FREQUENCY: 60-50 Hz
- Input Voltage: 100-240 Vac (full range)
- MTBF: >100,000 hours
| General Information | |
| Type | Intel Form Factor ATX 12V v3.0 |
| 80 PLUS | Gold |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
| Dimension | 150 x 160 x 86 mm |
| Efficiency | 90% at typical load |
| Fan Type | 140mm double ball bearing fan |
| HOLD UP TIME | >16ms |
| INPUT CURRENT | 15-6.5A |
| INPUT FREQUENCY | 60-50 Hz |
| Input Voltage | 100-240 Vac (full range) |
| MTBF | >100,000 hours |
| Output capacity | 1300W |
| PFC | Active PFC (>0.9 typical) |
| POWER GOOD SIGNAL | 100-150ms |
| PROTECTION | OVP/OPP/SCP/UVP/OCP/OTP |
| Warranty Information | |
| Warranty | 3 Years |
Gigabyte UD1300GM PG5 1300W ATX Power Supply
The Gigabyte UD1300GM PG5 1300W ATX Power Supply is a high-performance and reliable power supply unit designed to meet the demanding needs of modern computer systems. With its 80 PLUS Gold certification, it offers impressive energy efficiency, operating at 90% efficiency at typical loads. This means that it can deliver more power to your components while minimizing energy waste, reducing electricity costs, and contributing to a greener environment. The power supply boasts a robust construction and a compact form factor, measuring 150 x 160 x 86 mm, which ensures easy installation in most standard PC cases. The all-black, flat cable design not only enhances cable management and airflow within the system but also adds a sleek and professional aesthetic to your build. One of the notable features of this power supply is its ample set of connectors. It includes an ATX/MB 20+4 Pin connector for the motherboard, two CPU/EPS 4+4 Pin connectors for high-end processors, one PCIe 16 Pin connector for powerful graphics cards, and eight PCIe 6+2 Pin connectors for multi-GPU configurations. Additionally, it offers twelve SATA connectors and six 4-Pin Peripheral connectors, making it compatible with a wide range of components and peripherals. The UD1300GM PG5 is equipped with a 140mm double ball bearing fan that ensures efficient cooling while keeping noise levels to a minimum. This fan is designed to provide optimal airflow and help maintain stable temperatures during prolonged usage or under heavy loads. The power supply comes with active power factor correction (PFC), exceeding 0.9, which improves energy efficiency and reduces harmonic distortion. It also offers multiple protection features, including over-voltage protection (OVP), over-power protection (OPP), short-circuit protection (SCP), under-voltage protection (UVP), over-current protection (OCP), and over-temperature protection (OTP). These safety measures safeguard your components from potential damage caused by power irregularities. With an input voltage range of 100-240 Vac, it is compatible with various power outlets worldwide, allowing you to use it in different regions without worrying about voltage differences.
Gigabyte UD1300GM PG5 Power Supply Price In BD
If you're searching for a high-performance power supply for your computer setup in Bangladesh, look no further than the Gigabyte UD1300GM PG5 1300W ATX Power Supply. Offering a remarkable 1300W output capacity, this power supply is designed to handle the demands of modern gaming rigs, content creation workstations, and industrial applications. With an 80 PLUS Gold certification, the UD1300GM PG5 ensures exceptional energy efficiency, providing up to 90% efficiency at typical loads. This not only helps reduce electricity costs but also contributes to a greener environment by minimizing energy wastage.
At Ultratech, you can find the latest price for the Gigabyte UD1300GM PG5 1300W ATX Power Supply in 2023. We offer competitive pricing and guarantee genuine products to meet your power supply needs. Whether you're building a high-end gaming PC, running intensive industrial applications, or powering your office workstations, the Gigabyte UD1300GM PG5 is a reliable choice that won't disappoint.
Features
- 80 PLUS Gold Certification: The power supply is 80 PLUS Gold certified, indicating its high energy efficiency. It operates at up to 90% efficiency at typical loads, reducing energy waste and lowering electricity costs.
- Flat, All Black Cables: The power supply is equipped with flat, all-black cables. These cables not only improve cable management and airflow within the system but also offer a clean and professional look to your PC build.

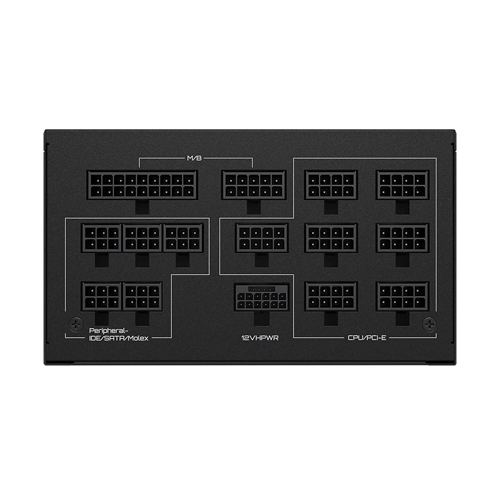

- Ample Connectors: The UD1300GM PG5 provides a comprehensive set of connectors to accommodate various components and peripherals. It includes an ATX/MB 20+4 Pin connector, two CPU/EPS 4+4 Pin connectors, one PCIe 16 Pin connector, eight PCIe 6+2 Pin connectors, twelve SATA connectors, and six 4-Pin Peripheral connectors.
- Compact Dimensions: With a compact form factor of 150 x 160 x 86 mm, the power supply ensures easy installation in most standard PC cases, without compromising on power capacity.
- 140mm Double Ball Bearing Fan: The power supply features a 140mm double ball bearing fan. This fan design provides efficient cooling and ensures reliable and quiet operation even under heavy loads.
- Active Power Factor Correction (PFC): The power supply is equipped with active PFC (>0.9 typical), which enhances energy efficiency and reduces harmonic distortion, resulting in a stable and clean power output.
- Protections: The UD1300GM PG5 comes with a range of protection features to safeguard your components. These protections include Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Current Protection (OCP), and Over Temperature Protection (OTP).
- Wide Input Voltage Range: The power supply can handle input voltages from 100 to 240 Vac, offering full-range compatibility with various power outlets worldwide.
- High Output Capacity: With an output capacity of 1300W, the power supply can provide abundant power to support high-end components, multi-GPU setups, and power-hungry computing tasks.
- Intel Form Factor ATX 12V v3.0: The power supply conforms to the Intel Form Factor ATX 12V v3.0 standard, ensuring compatibility with a wide range of motherboards and PC configurations.
In conclusion, the Gigabyte UD1300GM PG5 1300W ATX Power Supply is a high-quality and efficient power supply unit that delivers stable and reliable power to your high-performance computer system. Its outstanding energy efficiency, robust design, and comprehensive protection features make it an ideal choice for gamers, content creators, and PC enthusiasts seeking a dependable power solution to support their demanding computing needs.
