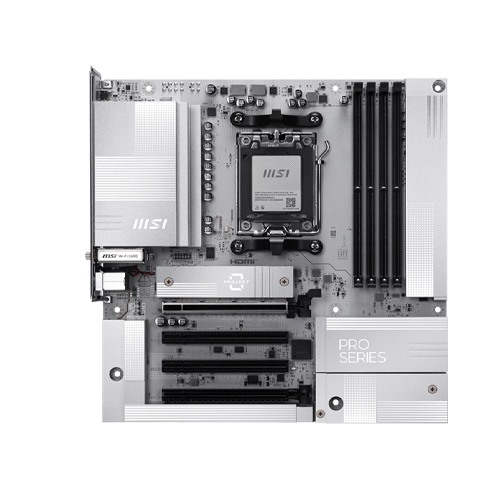

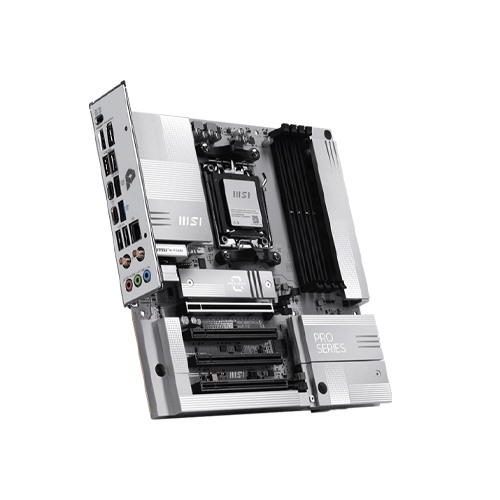

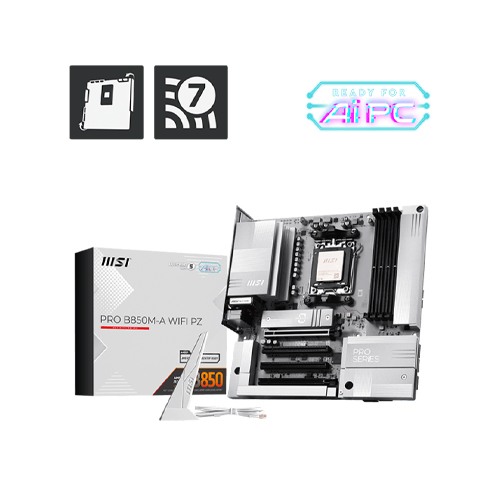

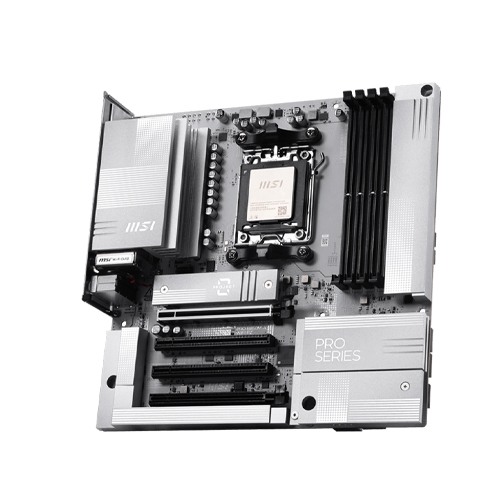

MSI PRO B850M-A WIFI PZ mATX AM5 Motherboard
- Stock: In Stock
- Brand: MSI
- Model: PRO B850M-A WIFI PZ
Key Features
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4, Max Resolution of 4K 60Hz
- Features: 2x M.2 Slot, Realtek 8126 5G LAN, Wi-Fi 7, Back-Connect (BTF) Design
| General Information | |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LAN | Realtek® 8126 5G LAN |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Operating System | Support for Windows® 11 64-bit |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage device |
| Slot | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |

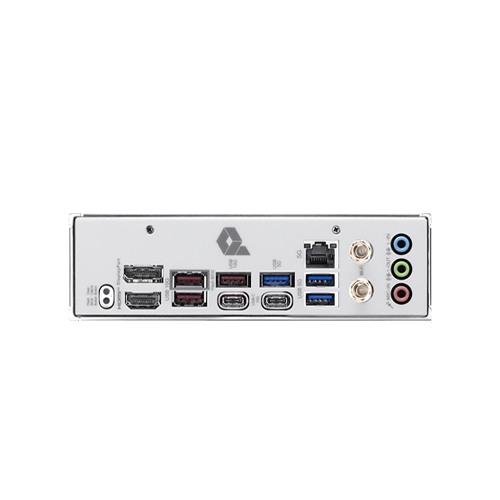

| USB | 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Main Features | |
| Chipset | AMD B850 |
| Warranty Information | |
| Warranty | 3 Years |
MSI PRO B850M-A WIFI PZ Motherboard
MSI PRO B850M-A WIFI PZ mATX AM5 Motherboard is designed to deliver exceptional performance, stability, and connectivity for modern desktop builds. Powered by the AMD B850 chipset, it supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors, ensuring compatibility with next-generation computing technology. Built with reliability and efficiency in mind, this motherboard is perfect for professional workloads, gaming, and productivity-focused systems.
Powerful Performance and CPU Support
The MSI PRO B850M-A WIFI PZ is equipped with the AM5 socket, supporting the latest AMD Ryzen™ processors for superior computing performance. It ensures future-ready compatibility and provides enhanced power delivery and cooling design for stable operation under heavy workloads. The board is optimized to maximize CPU potential, making it an ideal choice for users seeking efficiency and speed.
Advanced DDR5 Memory Support
Featuring 4x DDR5 UDIMM slots, this motherboard supports up to 256GB of system memory. It is capable of achieving memory speeds up to DDR5-8200+ (OC) for Ryzen™ 9000 series processors. With dual-channel support, AMD EXPO™ compatibility, and advanced overclocking options, users can unlock ultra-fast data processing and seamless multitasking performance. Additionally, it supports Non-ECC, Un-buffered, and CUDIMM memory for greater flexibility.
High-Quality Onboard Graphics
For users utilizing Ryzen processors with integrated graphics, the board offers 1x HDMI 2.1 and 1x DisplayPort 1.4 outputs, both supporting 4K resolution at 60Hz. This ensures crisp visuals and compatibility with modern high-definition displays, making it suitable for office work, entertainment, and light gaming.
Expansion and Storage Options
The PRO B850M-A WIFI PZ features 4x PCIe slots, including one PCIe 5.0 x16 slot for the latest GPUs, ensuring maximum bandwidth for graphics performance. Storage flexibility is ensured through 2x M.2 slots (supporting PCIe 5.0 and 4.0) and 4x SATA 6G ports, with RAID support for both NVMe and SATA drives. This setup guarantees lightning-fast boot times and massive data storage capacity.
Connectivity and Networking
The motherboard integrates Realtek® 8126 5G LAN for high-speed wired connections and Wi-Fi 7 for cutting-edge wireless performance up to 2.9Gbps. It also includes Bluetooth® 5.4 for enhanced device connectivity. With support for MU-MIMO, 6GHz bands, and MLO, it ensures fast and stable internet access for demanding applications.
Comprehensive I/O and USB Support
MSI provides abundant connectivity with multiple USB ports, including USB 10Gbps Type-A and Type-C connectors on both front and rear panels. This ensures quick data transfer and compatibility with the latest peripherals. Internal headers support various additional connections for expandability and custom builds.
Enhanced Audio and LED Features
Equipped with the Realtek® ALC897 codec, this motherboard delivers 7.1-channel high-definition audio for an immersive sound experience. Additionally, it includes EZ Debug LEDs and EZ Memory Detection LEDs for effortless troubleshooting and system monitoring, alongside RGB headers for aesthetic customization.
Conclusion
Features
- Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
- AMD B850 chipset with AM5 socket for next-gen performance
- 4x DDR5 UDIMM slots, up to 256GB capacity
- Supports DDR5 8200+ (OC) / 5600–4800 (JEDEC) MT/s speeds
- Dual-channel memory architecture with AMD EXPO™ support
- 1x HDMI 2.1 and 1x DisplayPort 1.4, supports 4K@60Hz output
- PCIe 5.0 x16 slot for the latest high-speed GPUs
- 2x M.2 slots (PCIe 5.0 & PCIe 4.0) and 4x SATA 6Gb/s ports
- Supports RAID 0, 1 for NVMe and RAID 0, 1, 10 for SATA drives
- Realtek® ALC897 7.1-channel high-definition audio
- Realtek® 8126 5G LAN for ultra-fast wired networking
- Built-in Wi-Fi 7 with MU-MIMO and Bluetooth® 5.4
- Multiple USB options: 10Gbps Type-A & Type-C ports (rear & front)
- 4x EZ Debug LED and EZ Memory Detection LED for easy troubleshooting
- Supports RGB and Addressable RGB lighting (JRGB & JARGB_V2 connectors)
- Pre-installed M.2 Wi-Fi module for stable wireless connection
- Compact mATX form factor with high build quality and reliability
